CP Plus 10amp 12V 8x CCTV Power Supply
CP Plus 10amp 12V 8x CCTV Power Supply ( CP-DPS-PD08V3-12D )
- 8 Channel Output
- With Cable Compensation Switch
- LED Indicator for Each Channel
- Built-in EMI Filter to Nullify Interference
- Cooling by Free Air Convection
- Built-in Constant Current Limiting Circuit
- 100% Full Load Built-in test
- Plastic Housing
-
Input voltage 140 ~ 264VAC Output voltage 12.05V Current Range 3.2A/12.44 Rated Power 36W Ripple & Noise (max.) 240mV Line Regulation 0.48% Load Regulation 0.48% Efficiency (Typ.) 86.60% Leakage Current <2mA @ 240V overvoltage protection Support Dielectric Strength (Hi-pot) 2.5KV Insulation Resistance 100MΩ@500VDC Surge Immunity 2.8KV Electrical Fast Transient 2KV Output Voltage 100VAC with Full Load 09.83V MOV Rating MOV Rating Bridge Diode Rating Bridge Diode Rating AC Plug Type 2 Terminal Main E Cap Rating 47uF/450V Output Voltage 300VAC with Full Load 12.41V DC Plug Type 2 Terminal (Single Port) Output Voltage 230VAC with Full Load 12.47V Mosfet Rating 650V/7A, PWM Controller Output E Cap Rating 2200+1000uF/25V Output Diode Rating 2 SMD and 2 th diode Over Current Support Short circuit Support Working temperature -20 ~ +45°C Working Humidity 20 ~ 90% RH Non-condensing Storage Temperature -20 ~ +85°C Storage Humidity 10 ~ 95% RH Temperature coefficient ±0.03%/°C (0~50°C) Dimension 144(L) x 80(W) x 33mm(H) Weight 0.2kg
Related products
Sale
CP Plus HD 4 Channel DVR
Original price was: ₹4,500.00.₹3,500.00Current price is: ₹3,500.00. Add to cartSale
CP Plus HD 4 Channel DVR
Original price was: ₹3,500.00.₹2,500.00Current price is: ₹2,500.00. Add to cartSale

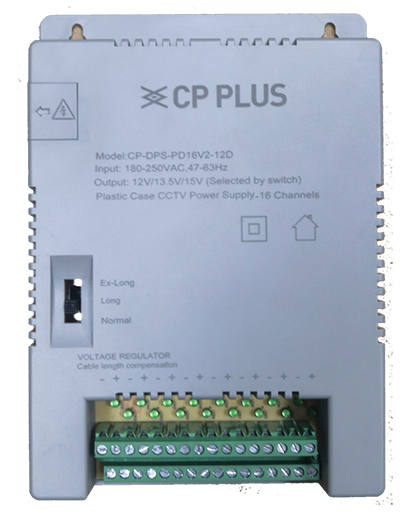

CP Plus 20amp 12V 16x CCTV Power Supply (CP-DPS-PD16V2-12D)
